Slim Light Emergency Luminary GR-8

Led Lighting , Maintained - Non-Maintained

Olympia Electronics
Supplier : Olympia Electronics
Part Number : GR-8_leds
Barcode : 5205327019369
Availability : In Stock

These luminaires are used indoors (ta 40oC) where emergency light is needed.Each luminaire must be permanently connected to mains power supply. In normal operation the illumination LEDs are lit as well as the green indicating charge LEDs when the battery is charging. In case of a mains power supply failure the luminaire will light the led strip automatically in emergency mode. When the mains power supply is restored the device turns to normal operation.

15.DHL
Official Olympia Electronics Distributor
Supplier Warranty
* Order now your parcel will leave our warehouse in less than 72 HOURS * Trace your package anytime via tracking number that we will send you via SMS and email

product details

Features

  • Latest Led Technology
  • Easy to install
  • Low Profile
  • Great Design
  • Up to 3 Hours of Autonomy
  • Non Maintained / maintained operation*

* there is an option to select the non maintained or maintained operation by placing the jumper to the appropriate place , see manual for instructions.

** Combine with the Α-3008 for recessed mounting.


Technical Specifications

Power Voltage 220- 240 V AC/50-60 Hz
Maximum Power Consumption 2.7 W / 3 VA
Batteries (Ni-Cd) 3.6 V / 0.6 Ah
Controller Indicating Battery Charging Leds , Control Button(Test)
Charging Time 24 Hours
Minimum Autonomy 1,5 Hours
Light Source 12 White Leds
Brightness (230V AC / BackUp) 40 lm / 100 lm
IP Enclosure Rating IP 42
Manufactured According to EN 60598-1, EN 60598-2-22, ΕΝ 55015, ΕΝ 61547, ΕΝ 61000-3-2, ΕΝ 61000-3-3
Operating Temperatures 5 to 40 degrees Celsius
Operating Humidity Levels up to 95%
Material Bayblend FR3010, Transparent polycarbonate
External Dimensions 240x90x44 mm
Weight 345 gr
Warranty 3 years (1 year for the battery)

LED MODULE CHARACTERISTICS

Manufacturer

Olympia Electronics

Model Number

2501159

Voltage Range

2.9 - 3.6 V DC

Nominal Power

780 mW

Connections

Non reversible connection between main pcb and led module

Temperature (tc)

45 °C max. across the board

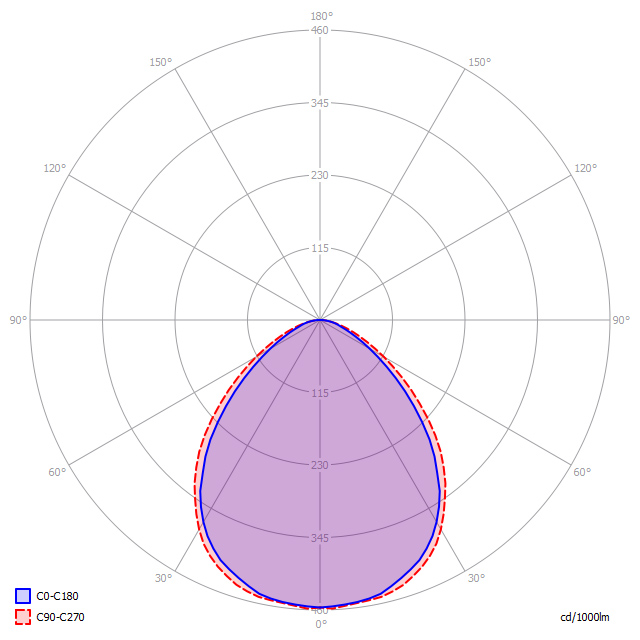

GR-8_LED_Photometrics

Attention!!

1. Operations for installation, maintainance or testing must be done by authorized personnel only.

2. The device must be connected to the mains power supply through a fuse dependent by the total amount of the line’s power load.

3. It is suggested to check every month the indication LED for battery charging, and by pushing the TEST button to check the emergency circuit. The led strip should light as long as the TEST button is pressed. If the luminaire doesn’t work as described above contact the installer.

4. It is suggested to check every 6 months the m i n i m u m a u t o n o n o u s d u r a t i o n b y disconnecting the mains power supply. Count the time that the led strip lights and in case of less time than the nominal autonomy, the battery must be replaced. If the measured time is considerably less than the nominal autonomy contact the installer. In case of battery or led strip replacement, these must be replaced by parts of the same type, by the manufacturer or by a competent person.

5. In case of inactive use for a period greater than 2 months, disconnect the battery by pulling out the battery’s connector.


** Notice The light source contained in this luminaire shall only be replaced by the manufacturer, or his agent, or a similar qualified person.

EMERGENCY LIGHTING GENERAL GUIDES

General Emergency Luminaire Categories

  • NON- MAINTAINED EMERGENCY LUMINAIRES: These luminaires operate only during an interruption of the mains power supply.They consist of a charging circuit, rechargeable batteries (usually Ni-Cd), a control circuit and a lamp ignition circuit, if the luminaire contains a fluorescent tube.
  • MAINTAINED EMERGENCY LUMINAIRES: Luminaires of this type operate either from the mains power supply and during the interruption of the mains power supply.The same lamp is used for both instances. They consist of a lamp operation circuit from the mains power supply (usually and electronic ballast), a charging circuit, rechargeable batteries (usually Ni-Cd), a control circuit and an inverter for the lamp, if the luminaire contains a fluorescent tube.
  • SUSTAINED EMERGENCY LUMINAIRES: This type of emergency luminaires is identical in operation with the maintained type with the only difference that two lamps are used, one for emergency operation and the other for operation with the mains power supply.
  • SLAVE EMERGENCY LUMINAIRES: These luminaires do not contain battery for their operation but depend on external power sources (central battery systems). The slave luminaires are categorized according to their operation voltage. There are models for 12, 24 V AC/DC and 230V AC/DC.

NEW TECHNOLOGY EMERGENCY LUMINAIRES

Selftesting «Intelligent» Emergency Luminaires.

This special category incorporates high technology microprocessors monitor basic operation parameters.The intelligent luminaires of olympia electronics monitor and test for:

  • Correct charging, internal circuitry operation and the correct battery installation on a continuous basis.
  • Correct lamp operation every 15 days.
  • Autonomous duration by fully discharging every 6 months.

They have three LEDs by which they show their operational state. This permits maintenance personnel with a glanc e, to know exactly which luminair es require maintenance and what type of maintenance is required. The intelligent luminaires are also available in non-maintained, maintained and sustained types.

Addresable Emergency Luminaires.

These types of luminaires operate with the same philosophy as the intelligent type with the main difference that the tests are conducted by commands that are issued by a central control panel, which is programmed by the user as to the type of test and when it will be conducted. The results of every test is stored into the panel’s memory and can be seen on the panel’s screen or can be printed. The installation and commissioning of such a system is surely more difficult but offers many advantages and capabilities compared to a system with common emergency luminaires.

Centrally Supplied Addresable Emergency Luminaires.

They operate with the same philosophy as the addressable emergency luminaires with the difference that they do not have batteries but are powered and simultaneously monitored by a central control panel. The installations of this type, apart from other things, have very few maintenance requirements because the batteries and all control circuitry are located in the central control panel.

Certifications

OLYMPIA ELECTRONICS S.A. is driven by quality and has adopted production and inspection procedures that help to supply the market with products that are in accordance with the European construction prototypes (ΕΝ). During production, the company applies advanced ‘world-class manufacturing' processes, such as lean systems, TPM and 5S which offers significant competitive advantages. Its products carry certificates from various laboratories such as:

  • LPCB: LPBC Cerification is delivered by BRE Group which is an innovative group of researchers, scientists, engineers and technicians who share a common goal – to make the built environment better for all. They generate new knowledge through independent research. This is used to create the products, standards and qualifications that help to ensure buildings, homes and communities are safe, efficient, productive, sustainable and enjoyable places to be.
  • VdS: VdS is an independent institution which has been ensuring safety and trust in the fields of fire protection and security for many decades and develops advanced safety concepts for significant industrial and commercial enterprises, leading manufacturers and system businesses as well as specialist firms and independent specialists.
  • LLOYD'S REGISTER GROUP: LLOYD'S REGISTER GROUP is one of the world’s leading providers of professional services for engineering and technology – improving safety and increasing the performance of critical infrastructures for clients in over 75 countries worldwide.Their product certification services help companies prove that their products are compliant with specified regulations or that they meet LR's standards and rules.
  • H.E.E.Q.A.C: In addition to a Product Testing Laboratory, HEEQAC has been recognized also as a Product Certification Body according to EN ISO 45011. Our capabilities in providing support for product certifications are related to the extensive capabilities in product testing and to the expertise in the entire range of requirements for certifying a product. Our support for product certification may be based on European Directives (CE Mark or Wheelmark) or any requirements of the customer in accordance with global or national standards.
  • EVPU: EVPU is an independent certification body that provide cerification services.The certification involves assessment of the ability of products to meet criteria stated in technical standards for which the Certification body is accredited.
  • BSI: BSI is a business standards company that bring together the collective wisdom of over 11,000 experts to generate best practice for business. And using this knowledge and experience BSI ensures its assessors are trained to deliver leading certification services to their clients.
  • Bureau Veritas: Bureau Veritas is an international group specialized in the inspection, analysis, audit, and certification of products, infrastructure (buildings, industrial sites, equipment, ships, etc.) and management systems in relation to regulatory or voluntary standards.

The company operates a complete management system, IQMS 'oly q', which includes quality management systems, as well as environmental, hygiene and personnel safety management systems. Olympia Electronics S.A. has been certified according to ISO9001, OHSAS 18001, ISO 140001 and, for the second time, has been accredited the European enterprise distinction in the scope of EFQM Levels of Excellence. Additionally, the company holds the bee bronze award of the European Business Ethics Network since 2011.
